3169CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

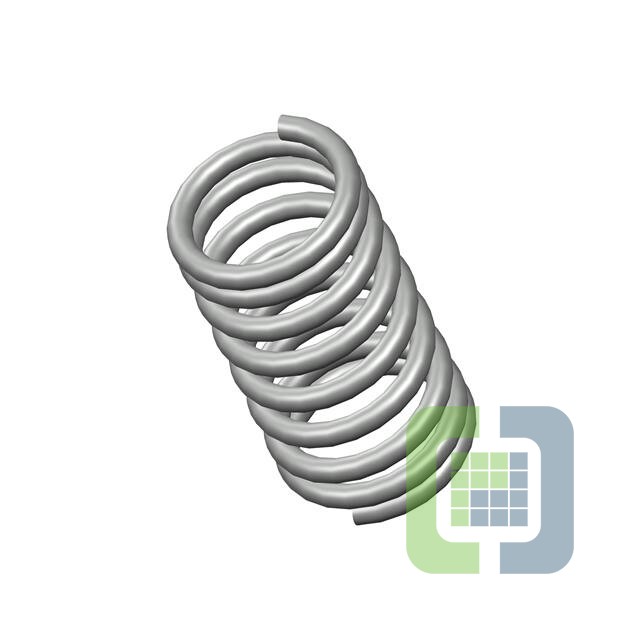

- DescriptionCOMP O=1.312,L= 2.63,W= .162
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 268
Can ship immediately
Pricing:
- 1$6.68
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.163" (4.14mm)
- Diameter - Outside:1.312" (33.32mm)
- Diameter - Inside:0.986" (25.04mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:2.630" (66.80mm)
- Max Load:-
- Rate:103.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
