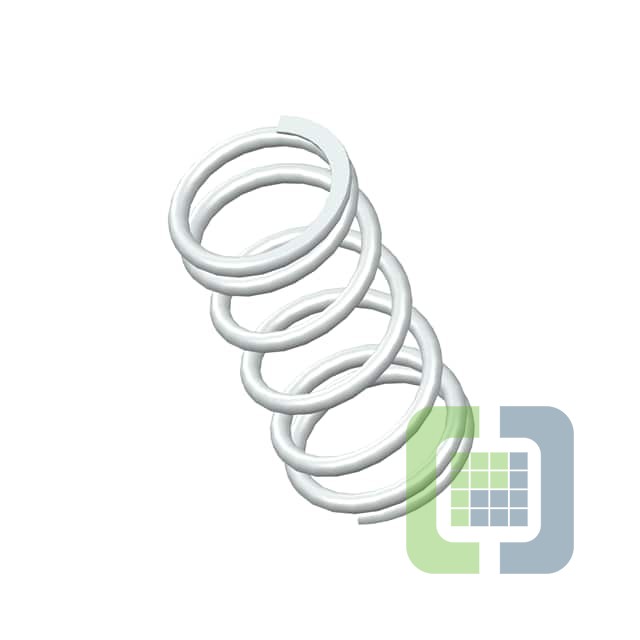

70479SCS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .210,L= .44,W= .022
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 725
Can ship immediately
Pricing:
- 1$6.89
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.022" (0.56mm)
- Diameter - Outside:0.210" (5.33mm)
- Diameter - Inside:0.166" (4.22mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.440" (11.18mm)
- Max Load:-
- Rate:9.7 lbs/in
- End Style:Closed & Ground
- Finish:None
