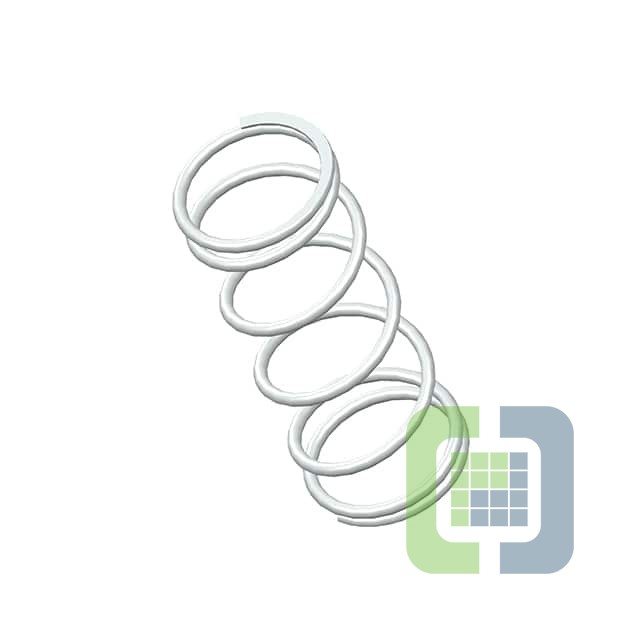

71054SCS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .360,L= .94,W= .029
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 1,076
Can ship immediately
Pricing:
- 1$6.96
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.029" (0.74mm)
- Diameter - Outside:0.360" (9.14mm)
- Diameter - Inside:0.302" (7.67mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.940" (23.88mm)
- Max Load:-
- Rate:5.2 lbs/in
- End Style:Closed & Ground
- Finish:None
