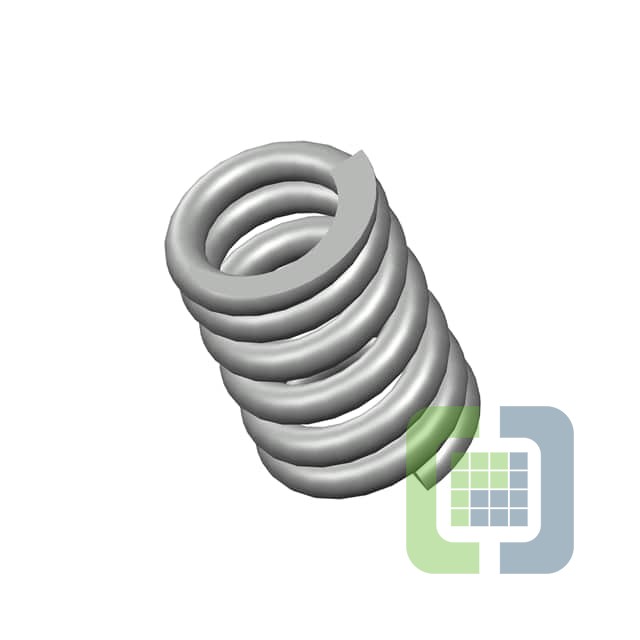

10969CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O=1.000,L= 1.50,W= .177
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 1,221
Can ship immediately
Pricing:
- 1$7.03
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Hard Drawn
- Wire Diameter:0.177" (4.50mm)
- Diameter - Outside:1.000" (25.40mm)
- Diameter - Inside:0.646" (16.41mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.500" (38.10mm)
- Max Load:-
- Rate:595.0 lbs/in
- End Style:Closed & Ground
- Finish:Black Oxide
