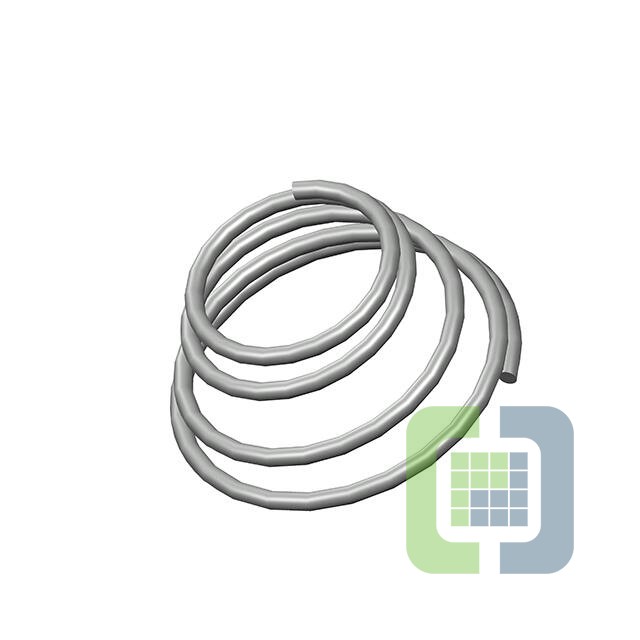

TA-2216CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionLO= 1.781, SO= 1.062, W= 0.091
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 4,521
Can ship immediately
Pricing:
- 1$7.08
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.091" (2.31mm)
- Diameter - Outside:-
- Diameter - Inside:0.880" (22.35mm)
- Diameter - Small Outside:1.062" (26.97mm)
- Diameter - Large Outside:1.781" (45.34mm)
- Free Length:0.940" (23.88mm)
- Max Load:-
- Rate:20.9 lbs/in
- End Style:Closed
- Finish:None
