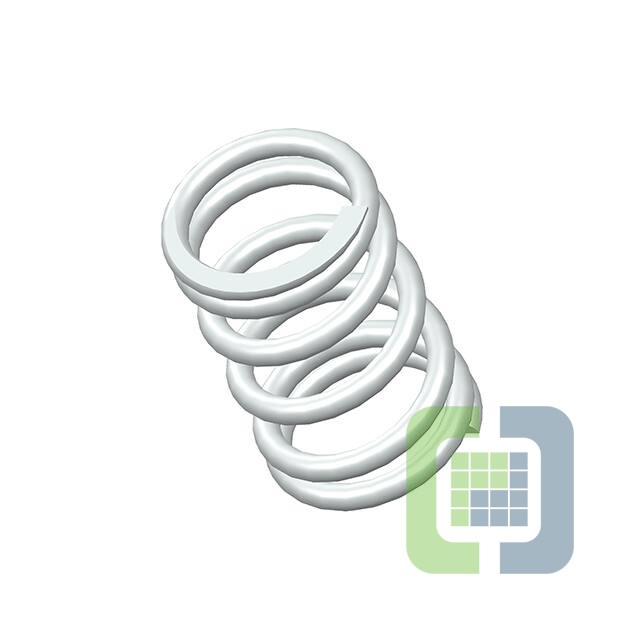

71701SCS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .540,L= .88,W= .067
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 449
Can ship immediately
Pricing:
- 1$7.14
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.067" (1.70mm)
- Diameter - Outside:0.540" (13.72mm)
- Diameter - Inside:0.406" (10.31mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.880" (22.35mm)
- Max Load:-
- Rate:57.0 lbs/in
- End Style:Closed & Ground
- Finish:None
