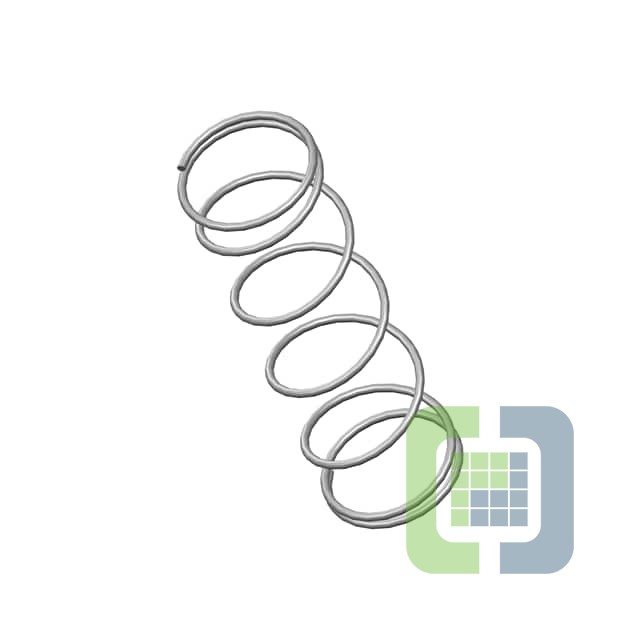

B6-19CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP, O=.084, W=.005, L=.280
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 757
Can ship immediately
Pricing:
- 1$7.32
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.005" (0.13mm)
- Diameter - Outside:0.084" (2.13mm)
- Diameter - Inside:0.074" (1.88mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.280" (7.11mm)
- Max Load:-
- Rate:0.36 lbs/in
- End Style:Closed
- Finish:None
