71014SCS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .300,L= .94,W= .051

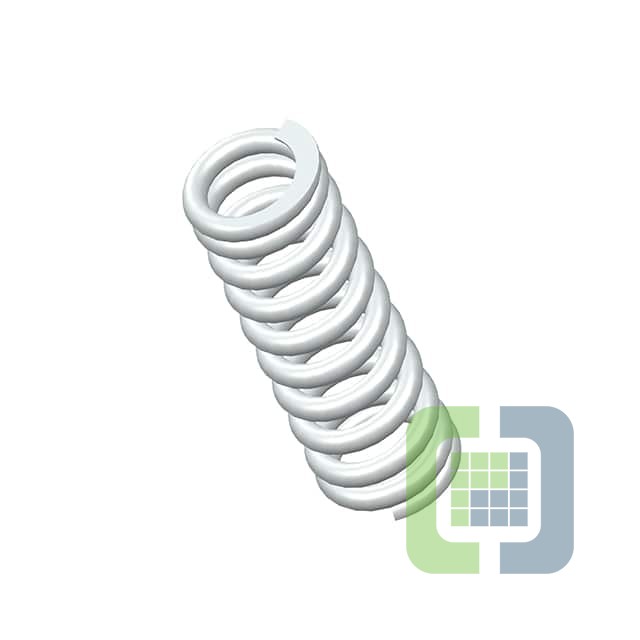

- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 403
Can ship immediately
Pricing:
- 1$7.38
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.051" (1.30mm)
- Diameter - Outside:0.300" (7.62mm)
- Diameter - Inside:0.198" (5.03mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.940" (23.88mm)
- Max Load:-
- Rate:64.0 lbs/in
- End Style:Closed & Ground
- Finish:None
