1896CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

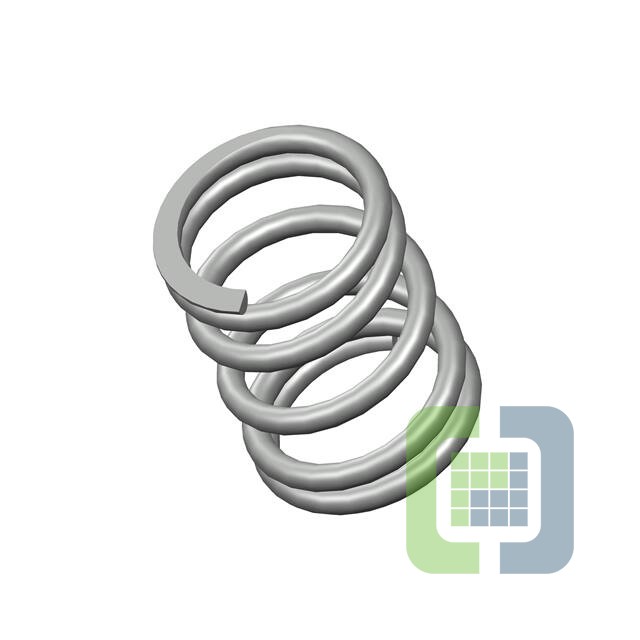

- DescriptionCOMP O=1.281,L= 1.75,W= .147
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 1,365
Can ship immediately
Pricing:
- 1$8.22
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Music Wire
- Wire Diameter:0.147" (3.73mm)
- Diameter - Outside:1.281" (32.54mm)
- Diameter - Inside:0.987" (25.07mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.750" (44.45mm)
- Max Load:-
- Rate:132.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
