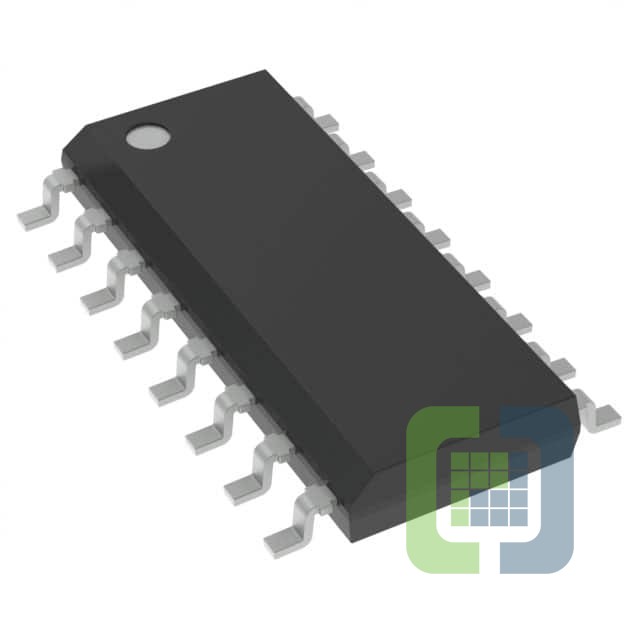

SG3525AP
STMicroelectronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BCK/PSH-PULL 16SOIC
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet SG3525AP Datasheet
-
ECAD Model
- Share
In Stock: 1,742
Can ship immediately
Pricing:
- 1$1.75
- 50$1.49955
- 100$1.29343
- 500$1.08152
- 1,000$0.91427
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down, Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Buck, Push-Pull
- Number of Outputs:2
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):8V ~ 35V
- Frequency - Switching:100Hz ~ 400kHz
- Duty Cycle (Max):49%
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Enable, Soft Start
- Operating Temperature:0°C ~ 70°C (TA)
- Mounting Type:Surface Mount
- Package / Case:16-SOIC (0.154", 3.90mm Width)
- Supplier Device Package:16-SO
