BD9610AMUV-E2
ROHM Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK 20VQFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet BD9610AMUV-E2 Datasheet
-
ECAD Model
- Share
In Stock: 2,617
Can ship immediately
Pricing:
- 1$3.93
- 2,500$1.96
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Not For New Designs
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):10V ~ 56V
- Frequency - Switching:50kHz ~ 500kHz
- Duty Cycle (Max):-
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control, Soft Start
- Operating Temperature:-40°C ~ 105°C (TA)
- Mounting Type:Surface Mount

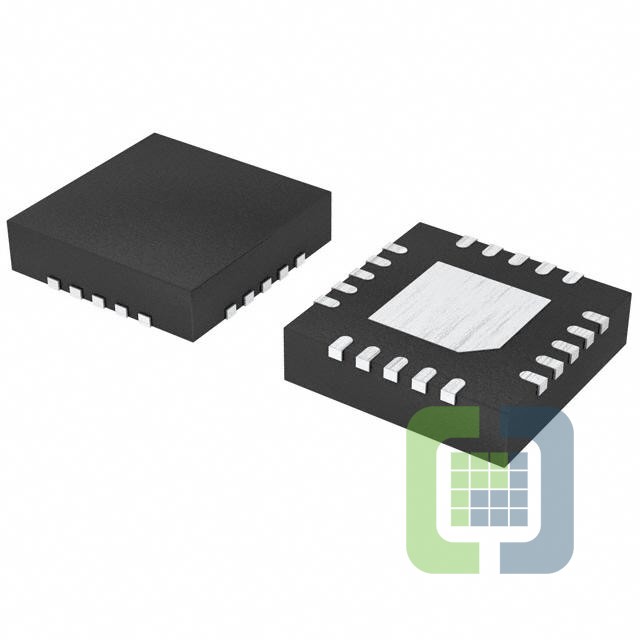

- Package / Case:20-VFQFN Exposed Pad
- Supplier Device Package:VQFN020V4040
