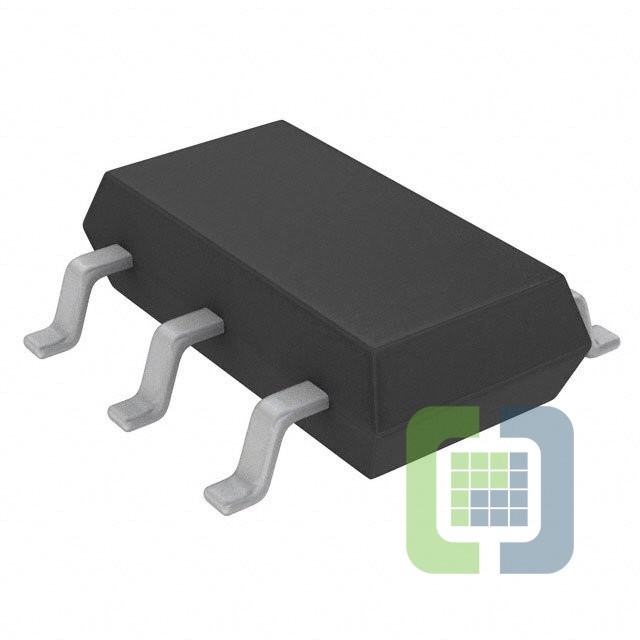

LTC3803IS6#TRMPBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR FLYBACK TSOT23-6
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet LTC3803IS6#TRMPBF Datasheet
-
ECAD Model
- Share
In Stock: 4,516
Can ship immediately
Pricing:
- 1$3.62
- 500$1.77507
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up/Step-Down
- Output Configuration:Positive, Isolation Capable
- Topology:Flyback
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):5.7V ~ 8V
- Frequency - Switching:200kHz
- Duty Cycle (Max):80%
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Enable
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:SOT-23-6 Thin, TSOT-23-6
- Supplier Device Package:TSOT-23-6
