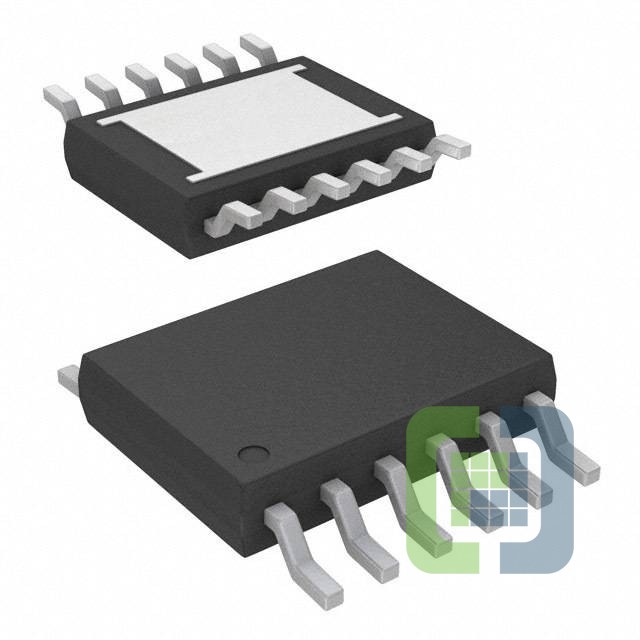

LTC3863EMSE#PBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK 12MSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet LTC3863EMSE#PBF Datasheet
-
ECAD Model
- Share
In Stock: 1,278
Can ship immediately
Pricing:
- 1$5.51
- 25$3.65731
- 100$3.02389
- 250$2.8727
- 500$2.80789
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive or Negative
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):3.5V ~ 60V
- Frequency - Switching:50kHz ~ 850kHz
- Duty Cycle (Max):-
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control, Soft Start
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:12-TSSOP (0.118", 3.00mm Width) Exposed Pad
- Supplier Device Package:12-MSOP-EP
