MAX20751EKX+
Maxim Integrated
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK PMBUS 36QFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet MAX20751EKX+ Datasheet
-
ECAD Model
- Share
In Stock: 25,292,264
Can ship immediately
Pricing:
- 1$6.85
- 10$6.19102
- 25$5.90275
- 100$5.12524
- 490$4.8949
- 980$4.46299
- 1,470$3.88712
Quote It
Technical Details
- Series:-
- Package:Tray
- Part Status:Active
- Output Type:PWM Signal
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:4
- Output Phases:4
- Voltage - Supply (Vcc/Vdd):1.71V ~ 3.63V
- Frequency - Switching:300kHz ~ 800kHz
- Duty Cycle (Max):-
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:PMBus
- Control Features:Phase Control, Power Good, Ramp
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount

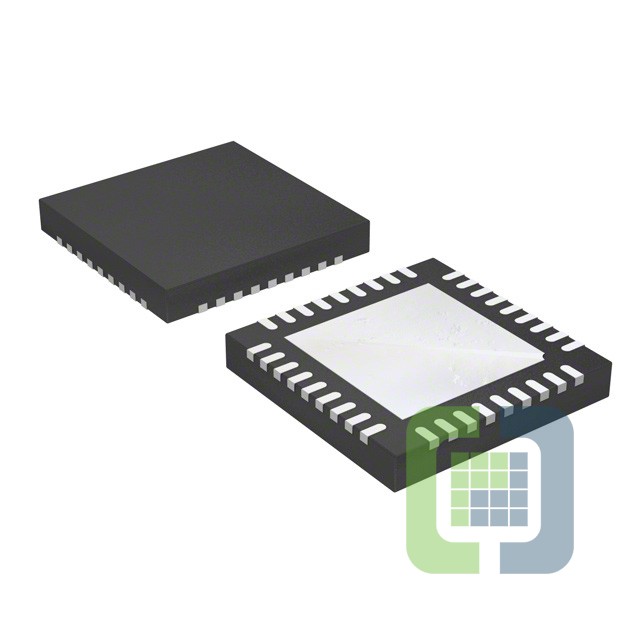

- Package / Case:36-VFQFN Exposed Pad
- Supplier Device Package:36-QFN (6x6)
