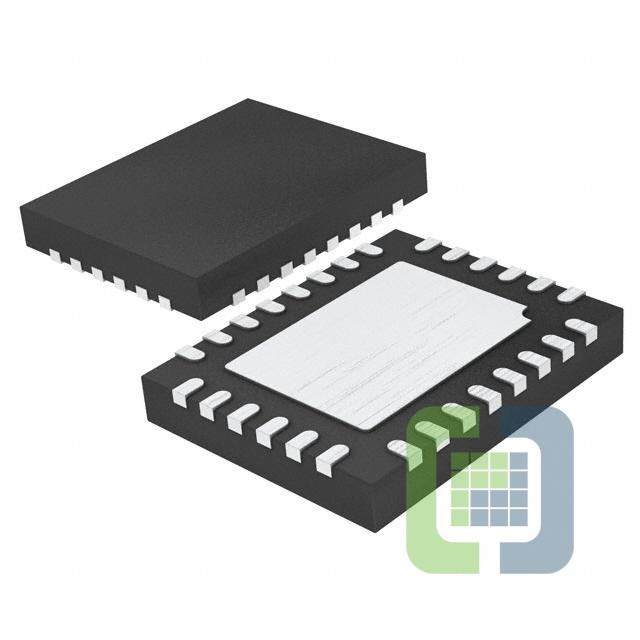

LTC7820EUFD#PBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC CHARGE PUMP DC/DC CTRLR 28QFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet LTC7820EUFD#PBF Datasheet
-
ECAD Model
- Share
In Stock: 753
Can ship immediately
Pricing:
- 1$11.28
- 25$7.48912
- 100$6.19213
- 250$5.88254
- 500$5.74983
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up, Step-Down
- Output Configuration:Positive
- Topology:Buck, Boost
- Number of Outputs:1
- Output Phases:2
- Voltage - Supply (Vcc/Vdd):6V ~ 72V
- Frequency - Switching:100kHz ~ 1MHz
- Duty Cycle (Max):50%
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control, Power Good, Soft Start
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:28-WFQFN Exposed Pad
- Supplier Device Package:28-QFN (4x5)
