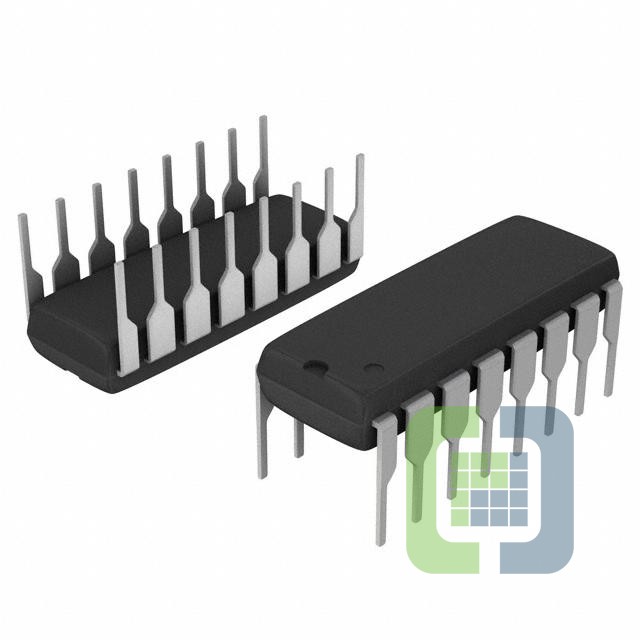

KA7500C
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSWITCHING CONTROLLER, VOLTAGE-MO
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet KA7500C Datasheet
-
ECAD Model
- Share
In Stock: 221,513
Can ship immediately
Pricing:
- 1$0.2
- 10$0.17143
- 100$0.1281
- 500$0.10064
- 1,000$0.07777
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):7V ~ 40V
- Frequency - Switching:1kHz ~ 200kHz
- Duty Cycle (Max):45%
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Dead Time Control
- Operating Temperature:-25°C ~ 85°C (TA)
- Mounting Type:Through Hole
- Package / Case:16-DIP (0.300", 7.62mm)
- Supplier Device Package:16-PDIP
