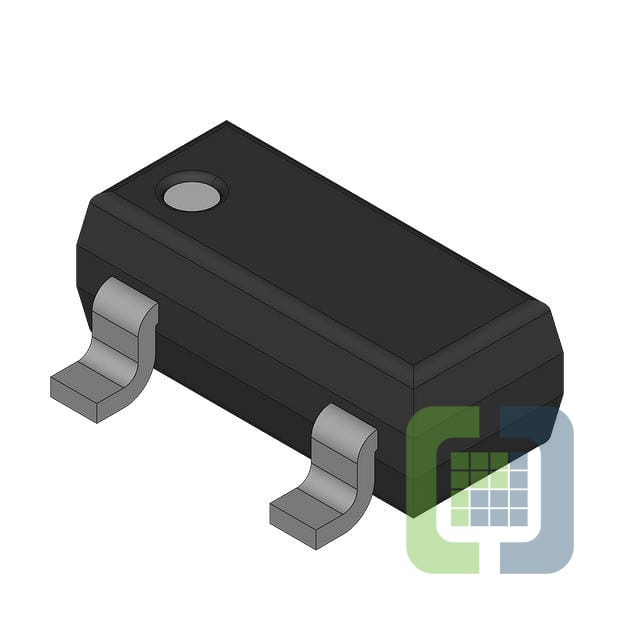

MAX5022EUT+T
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionMAX5022 CURRENT-MODE PWM CONTROL
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet MAX5022EUT+T Datasheet
-
ECAD Model
- Share
In Stock: 7,313
Can ship immediately
Pricing:
- 1$0.79
- 2,500$0.30642
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up/Step-Down
- Output Configuration:Positive, Isolation Capable
- Topology:Flyback, Forward Converter
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):11V ~ 28V
- Frequency - Switching:262kHz
- Duty Cycle (Max):75%
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:-
- Control Features:-
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:SOT-23-6
- Supplier Device Package:SOT-23-6
