TPS53014DGSR
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTPS53014 4.5V - 28V, 25A SYNCHRO
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 1,911
Can ship immediately
Pricing:
- 1$1.04
- 2,500$0.50775
- 5,000$0.48894
Quote It
Technical Details
- Series:D-CAP2™, Eco-Mode™
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):4.5V ~ 28V
- Frequency - Switching:500kHz
- Duty Cycle (Max):-
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Enable, Soft Start
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount

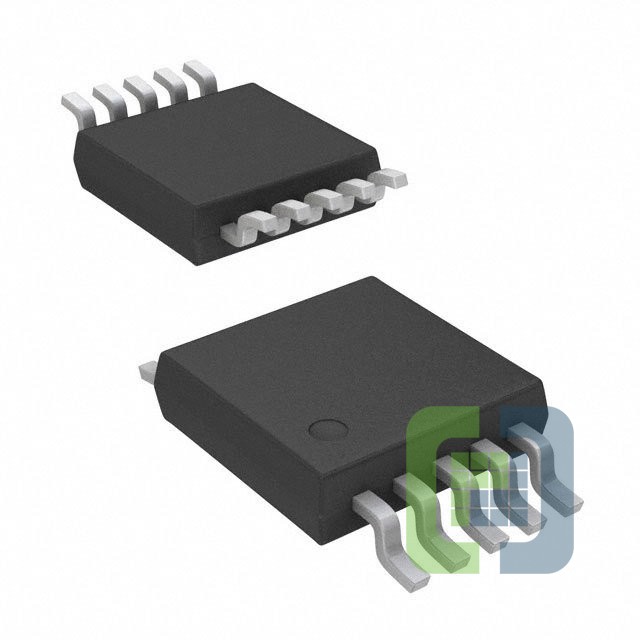

- Package / Case:10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
- Supplier Device Package:10-VSSOP
