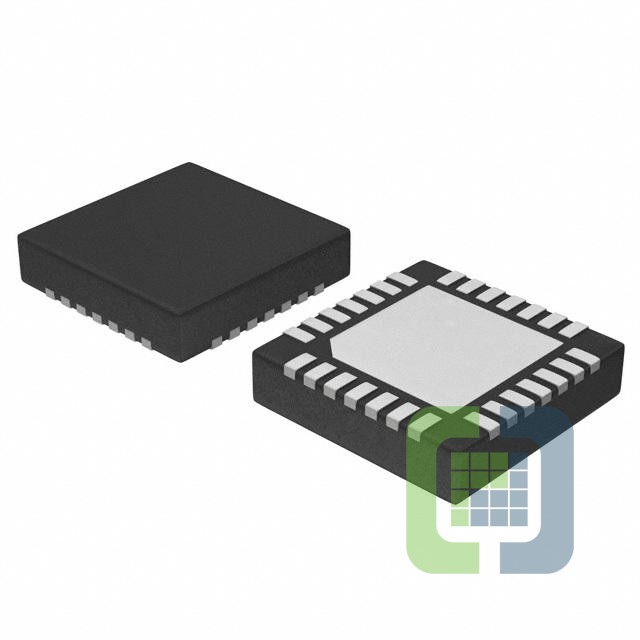

NCP81234MNTXG
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionNCP81234 - DUAL SWITCHING CONTRO
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet NCP81234MNTXG Datasheet
-
ECAD Model
- Share
In Stock: 13,267
Can ship immediately
Pricing:
- 1$1.05
- 5,000$0.975
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:PWM Signal
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:2
- Voltage - Supply (Vcc/Vdd):0.6V ~ 5V
- Frequency - Switching:200kHz ~ 1.2MHz
- Duty Cycle (Max):-
- Synchronous Rectifier:Yes
- Clock Sync:-
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control, Power Good
- Operating Temperature:-40°C ~ 125°C (TA)
- Mounting Type:Surface Mount
- Package / Case:28-VFQFN Exposed Pad
- Supplier Device Package:28-QFN (5x5)
