TPS40000DGQ
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTPS40000 LOW INPUT (2.25V-5.5V)
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 15,993
Can ship immediately
Pricing:
- 1$1.1
- 10$0.98705
- 80$0.93328
- 160$0.80884
- 560$0.68855
- 1,040$0.58071
- 2,560$0.55167
- 5,040$0.53093
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):2.25V ~ 5.5V
- Frequency - Switching:300kHz
- Duty Cycle (Max):94%
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Soft Start
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount

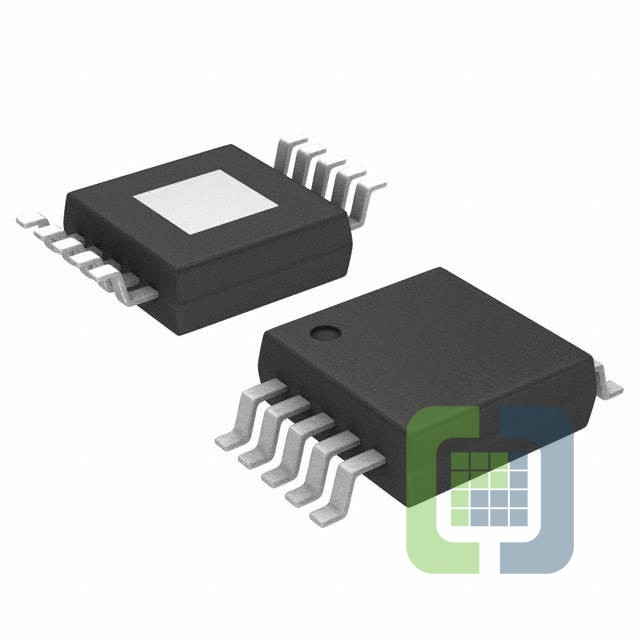

- Package / Case:10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad
- Supplier Device Package:10-MSOP-PowerPad
