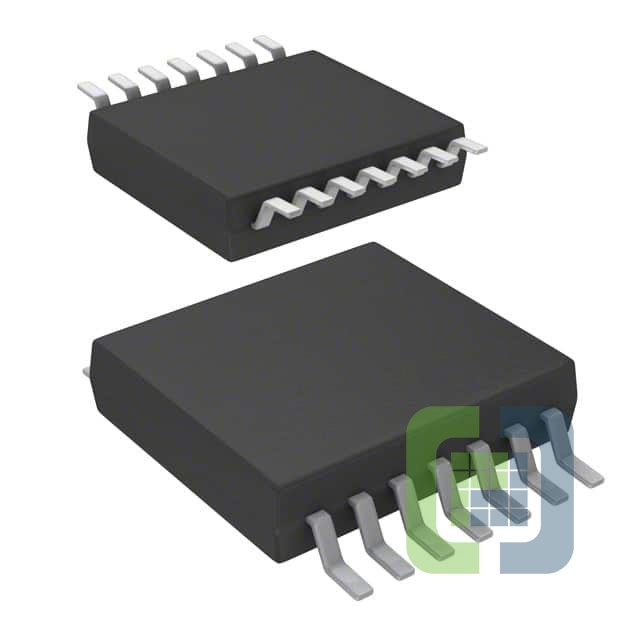

LM2747MTCX/NOPB
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionLM2747 1V - 14V VOLTAGE MODE SYN
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 18,652
Can ship immediately
Pricing:
- 1$1.11
- 2,500$1.0098
- 5,000$0.9724
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):3V ~ 6V
- Frequency - Switching:50kHz ~ 1MHz
- Duty Cycle (Max):86%
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control, Power Good, Soft Start, Tracking
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:14-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package:14-TSSOP
