TPS40210QDGQRQ1
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTPS40210-Q1 4.5V TO 52V WIDE INP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 47,592
Can ship immediately
Pricing:
- 1$1.15
- 2,500$0.49565
- 5,000$0.4773
Quote It
Technical Details
- Series:Automotive, AEC-Q100
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up, Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Boost, Flyback, SEPIC
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):4.5V ~ 52V
- Frequency - Switching:35kHz ~ 1MHz
- Duty Cycle (Max):-
- Synchronous Rectifier:No
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Enable, Frequency Control, Soft Start
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount

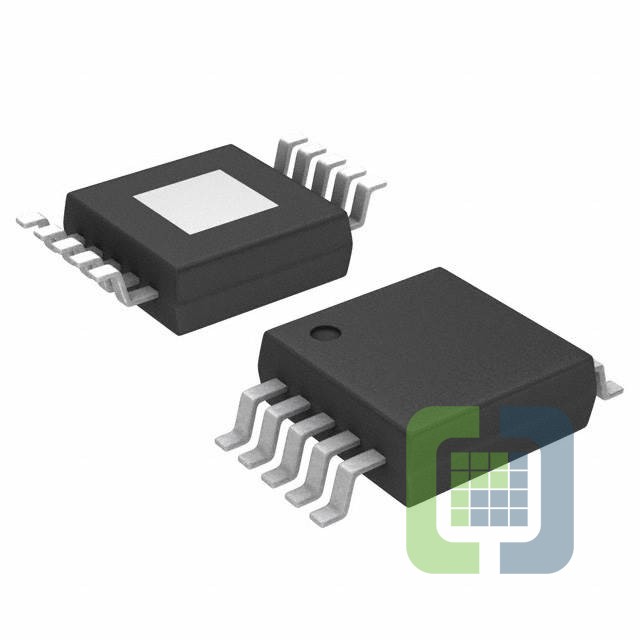

- Package / Case:10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad
- Supplier Device Package:10-MSOP-PowerPad
