UCC25705DGKTR
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionUCC25705 HIGH SPEED VOLTAGE MODE
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 107,369
Can ship immediately
Pricing:
- 1$1.33
- 2,500$1.21635
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up, Step-Up/Step-Down
- Output Configuration:Positive, Isolation Capable
- Topology:Boost, Flyback, Forward Converter
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):8.2V ~ 15V
- Frequency - Switching:1MHz
- Duty Cycle (Max):93%
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount

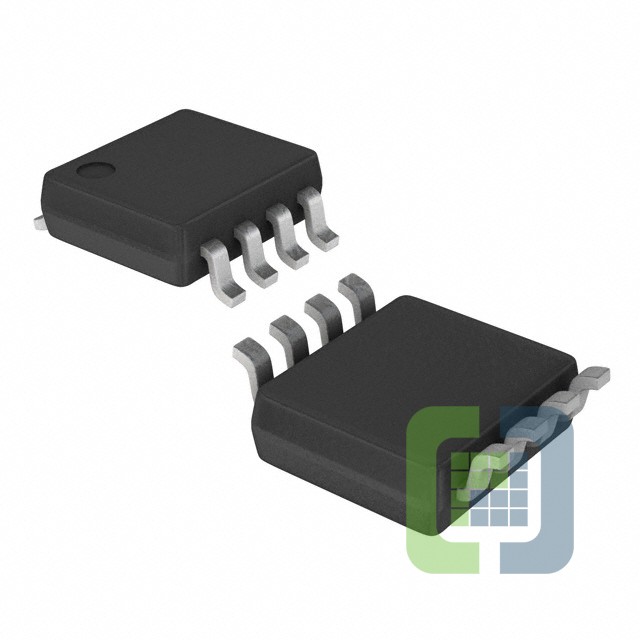

- Package / Case:8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
- Supplier Device Package:8-VSSOP
