NCP81274MNTXG
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionNCP81274 - SWITCHING CONTROLLER,
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet NCP81274MNTXG Datasheet
-
ECAD Model
- Share
In Stock: 113,760
Can ship immediately
Pricing:
- 1$1.37
- 5,000$1.274
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:PWM Signal
- Function:Step-Down
- Output Configuration:Positive and Negative
- Topology:Buck
- Number of Outputs:8
- Output Phases:8
- Voltage - Supply (Vcc/Vdd):4.5V ~ 20V
- Frequency - Switching:250kHz ~ 1.2MHz
- Duty Cycle (Max):100%
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:I²C, PSI
- Control Features:Current Limit, Enable, Frequency Control, Power Good, Ramp, Soft Start
- Operating Temperature:-10°C ~ 100°C (TA)
- Mounting Type:Surface Mount

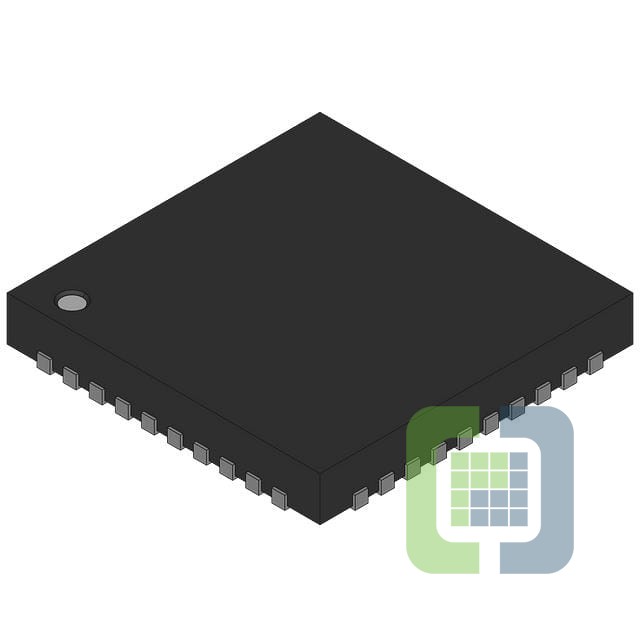

- Package / Case:40-VFQFN Exposed Pad
- Supplier Device Package:40-QFN (5x5)
