ISL8104IRZ
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSWITCHING CONTROLLER, VOLTAGE-MO
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet ISL8104IRZ Datasheet
-
ECAD Model
- Share
In Stock: 333
Can ship immediately
Pricing:
- 1$1.4
- 1,800$1.4
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):7.6V ~ 15.4V
- Frequency - Switching:200kHz ~ 1.5MHz
- Duty Cycle (Max):100%
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control, Soft Start
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount

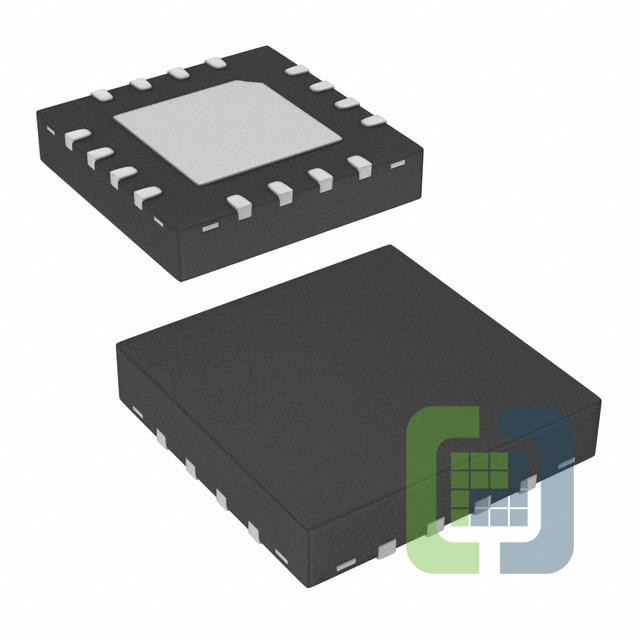

- Package / Case:16-VQFN Exposed Pad
- Supplier Device Package:16-QFN (4x4)
