ISL6269BCRZ
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSWITCHING CONTROLLER, VOLTAGE-MO
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet ISL6269BCRZ Datasheet
-
ECAD Model
- Share
In Stock: 887
Can ship immediately
Pricing:
- 1$1.84
- 750$1.84
Quote It
Technical Details
- Series:Robust Ripple Regulator™ (R3)
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):5V ~ 25V
- Frequency - Switching:200kHz ~ 600kHz
- Duty Cycle (Max):-
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Enable, Frequency Control, Phase Control, Power Good
- Operating Temperature:-10°C ~ 100°C (TA)
- Mounting Type:Surface Mount

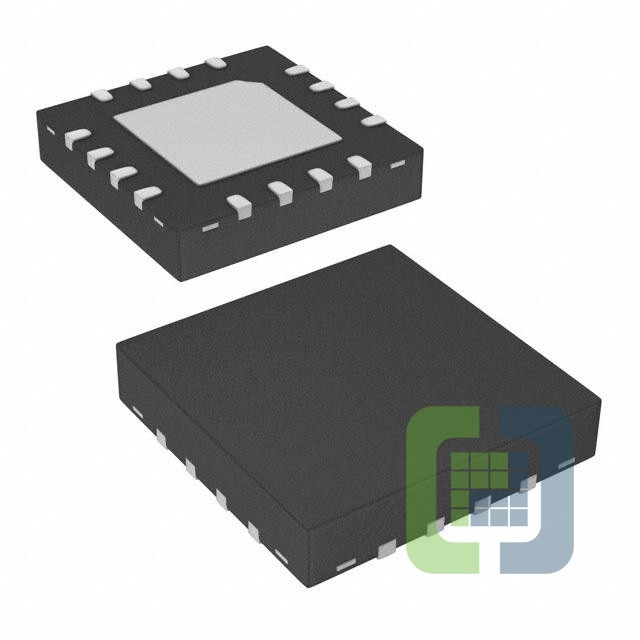

- Package / Case:16-VQFN Exposed Pad
- Supplier Device Package:16-QFN (4x4)
