ISL6558CRZ
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSWITCHING CONTROLLER, VOLTAGE-MO
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet ISL6558CRZ Datasheet
-
ECAD Model
- Share
In Stock: 727
Can ship immediately
Pricing:
- 1$1.91
- 600$1.91
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:PWM Signal
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:4
- Output Phases:4
- Voltage - Supply (Vcc/Vdd):4.75V ~ 5.25V
- Frequency - Switching:80kHz ~ 1.5MHz
- Duty Cycle (Max):75%
- Synchronous Rectifier:-
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Enable, Frequency Control, Power Good
- Operating Temperature:0°C ~ 70°C (TA)
- Mounting Type:Surface Mount

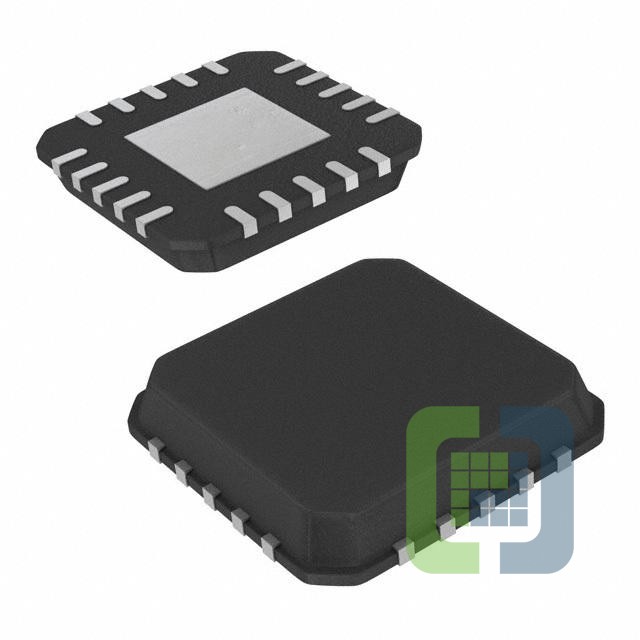

- Package / Case:20-VQFN Exposed Pad
- Supplier Device Package:20-QFN-EP (5x5)
