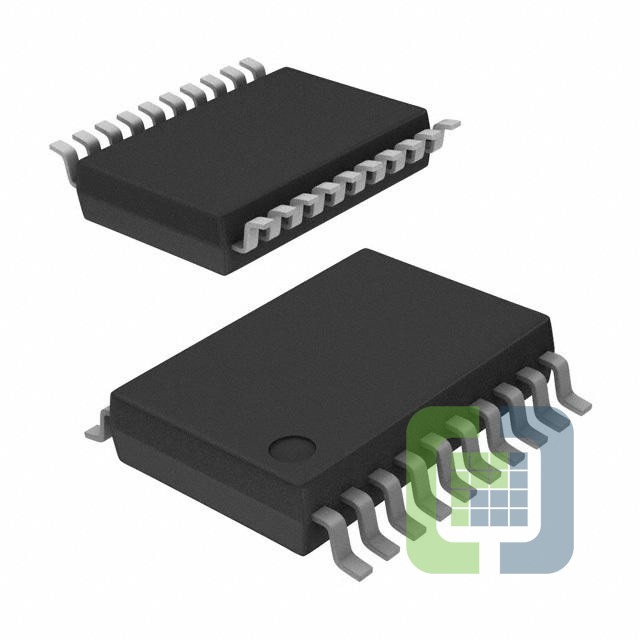

TPS5103IDBR
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTPS5103 SYNCHRONOUS BUCK CONTROL
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 78,062
Can ship immediately
Pricing:
- 1$1.98
- 2,000$1.77954
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):4.5V ~ 25V
- Frequency - Switching:200kHz
- Duty Cycle (Max):-
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Frequency Control, Soft Start
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:20-SSOP (0.209", 5.30mm Width)
- Supplier Device Package:20-SSOP
