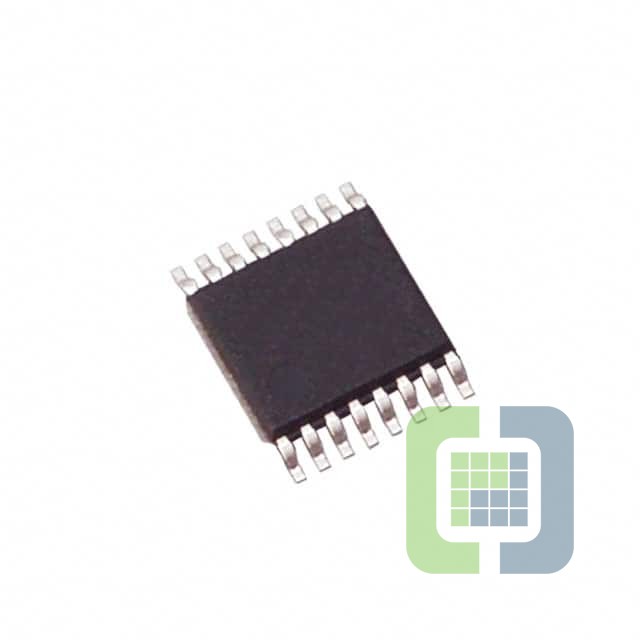

UCC2893PW
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionUCC2893 CURRENT MODE ACTIVE CLAM
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 1,146
Can ship immediately
Pricing:
- 1$2
- 10$1.79497
- 90$1.69696
- 180$1.47067
- 540$1.25196
- 1,080$1.05587
- 2,520$1.00307
- 5,040$0.96536
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up/Step-Down
- Output Configuration:Positive, Isolation Capable
- Topology:Flyback, Forward Converter
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):8.5V ~ 16V
- Frequency - Switching:250kHz
- Duty Cycle (Max):70%
- Synchronous Rectifier:No
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Current Limit, Enable, On Time Control, Ramp, Soft Start
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:16-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package:16-TSSOP
