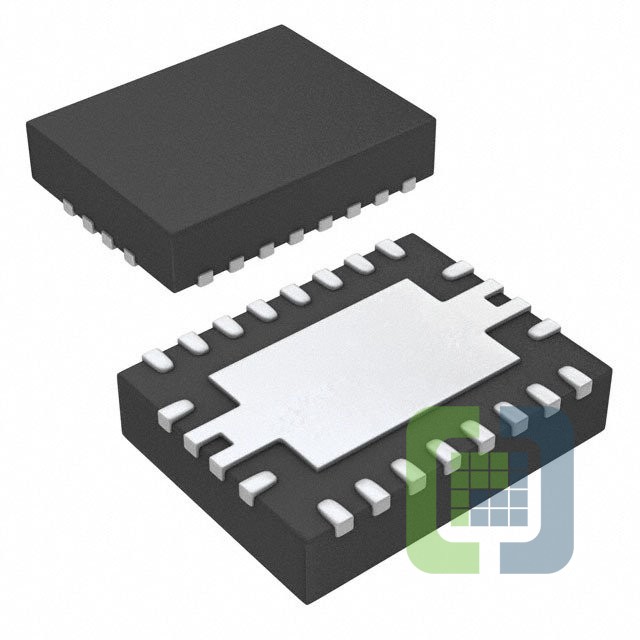

TPS40075RHLT
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTPS40075 WIDE INPUT SYNCHRONOUS
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 2,537
Can ship immediately
Pricing:
- 1$2.03
- 250$2.03
- 500$1.82151
- 1,250$1.53621
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):4.5V ~ 28V
- Frequency - Switching:Up to 1MHz
- Duty Cycle (Max):95%
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Current Limit, Frequency Control, Power Good, Soft Start
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:20-VFQFN Exposed Pad
- Supplier Device Package:20-VQFN (3.5x4.5)
