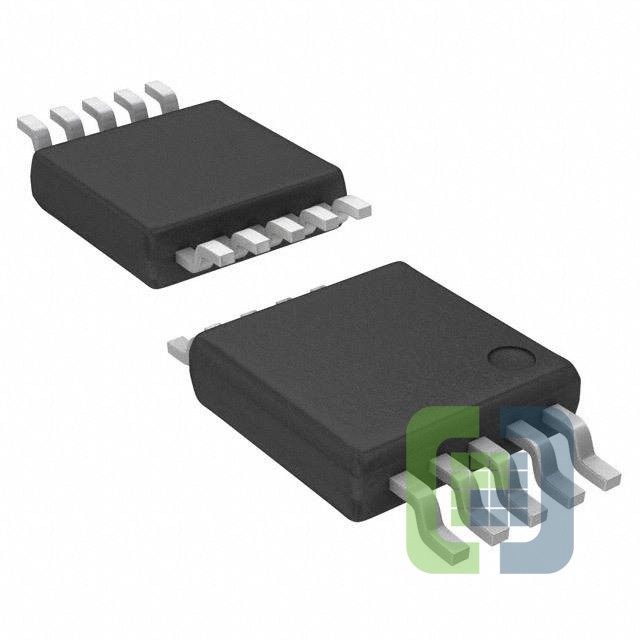

MAX1957EUB+T
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionMAX1957 LOW-COST, HIGH-FREQUENCY
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet MAX1957EUB+T Datasheet
-
ECAD Model
- Share
In Stock: 24,977
Can ship immediately
Pricing:
- 1$2.54
- 2,500$2.3009
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):3V ~ 5.5V
- Frequency - Switching:300kHz
- Duty Cycle (Max):89%
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
- Supplier Device Package:10-uMAX
