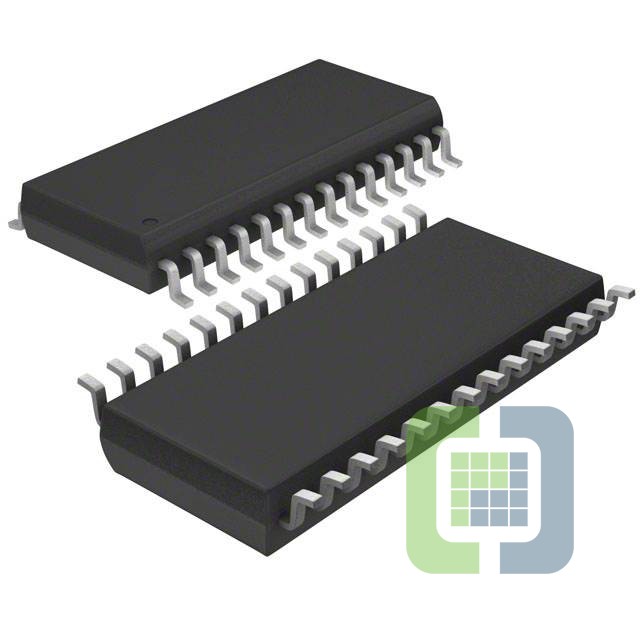

LM2647MTC/NOPB
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionLM2647 DUAL SYNCHRONOUS BUCK REG
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 3,900
Can ship immediately
Pricing:
- 1$2.82
- 10$2.53129
- 48$2.39325
- 144$2.07412
- 528$1.76567
- 1,008$1.48912
- 2,544$1.41466
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:2
- Output Phases:2
- Voltage - Supply (Vcc/Vdd):5.5V ~ 28V
- Frequency - Switching:200kHz ~ 500kHz
- Duty Cycle (Max):75%
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control, Power Good, Soft Start
- Operating Temperature:-5°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:28-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package:28-TSSOP
