TPS40052PWPR
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTPS40052 WIDE INPUT (8V-40V) UP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 5,646
Can ship immediately
Pricing:
- 1$2.85
- 2,000$2.22376
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):10V ~ 40V
- Frequency - Switching:100kHz ~ 1MHz
- Duty Cycle (Max):94%
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control, Soft Start
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount

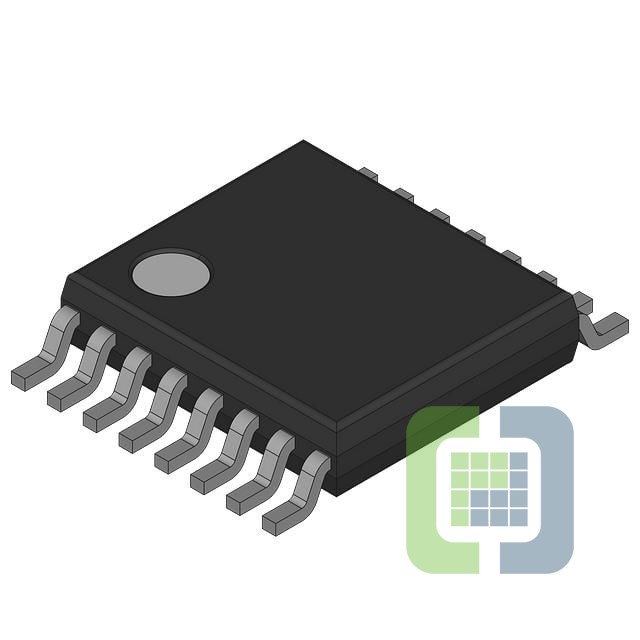

- Package / Case:16-PowerTSSOP (0.173", 4.40mm Width)
- Supplier Device Package:16-HTSSOP
