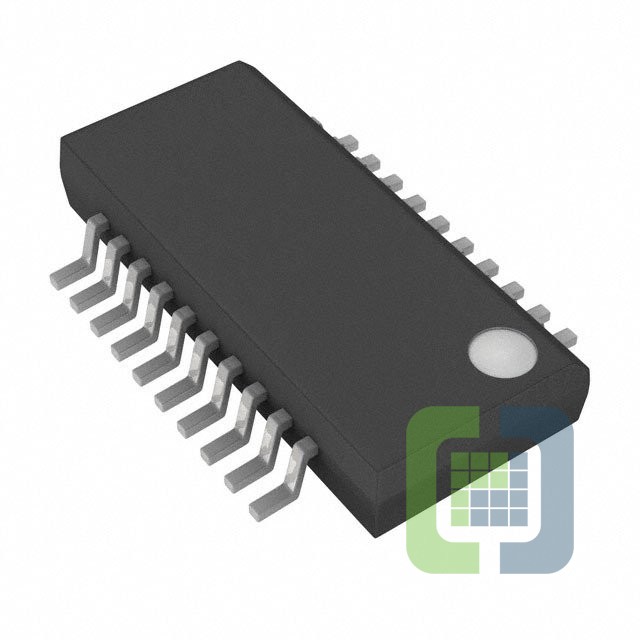

MAX1714AEEP+T
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionMAX1714 HIGH-SPEED STEP-DOWN CON
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet MAX1714AEEP+T Datasheet
-
ECAD Model
- Share
In Stock: 2,661
Can ship immediately
Pricing:
- 1$3.49
- 2,500$3.1654
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):4.5V ~ 5.5V
- Frequency - Switching:200kHz, 300kHz, 450kHz, 600kHz
- Duty Cycle (Max):100%
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Enable, On Time Control, Power Good
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:20-SSOP (0.154", 3.90mm Width)
- Supplier Device Package:20-QSOP
