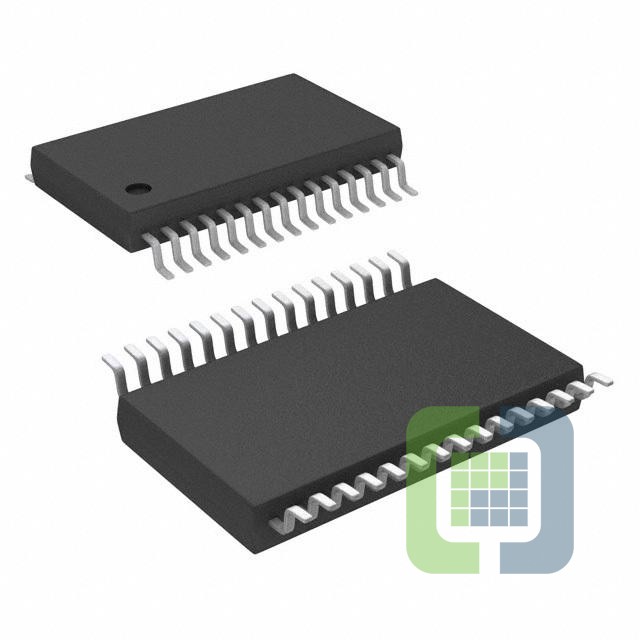

TPS5120QDBTRQ1G4
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTPS5120-Q1 AUTOMOTIVE 4.5V TO 28
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 66,116
Can ship immediately
Pricing:
- 1$4.33
- 2,000$3.7986
Quote It
Technical Details
- Series:Automotive, AEC-Q100
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:2
- Output Phases:2
- Voltage - Supply (Vcc/Vdd):4.5V ~ 28V
- Frequency - Switching:300kHz
- Duty Cycle (Max):83%
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Enable, Power Good, Soft Start
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:30-TFSOP (0.173", 4.40mm Width)
- Supplier Device Package:30-TSSOP
