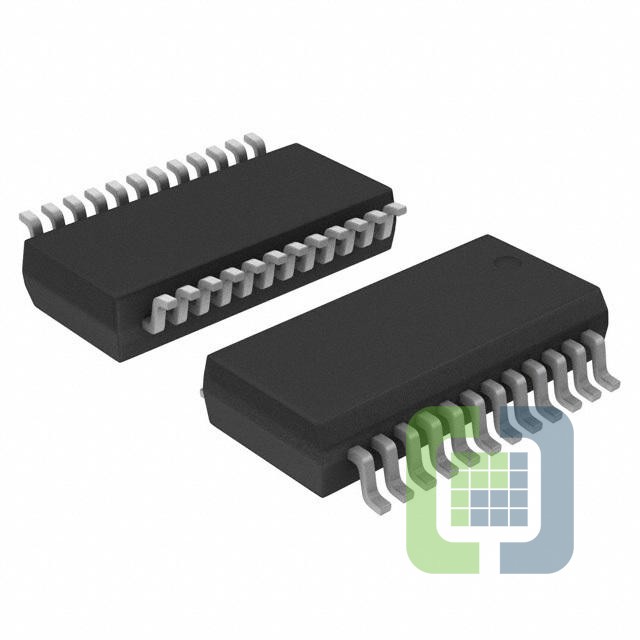

LTC3713EG#TRPBF
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionLOW INPUT VOLTAGE, HIGH POWER, N
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet LTC3713EG#TRPBF Datasheet
-
ECAD Model
- Share
In Stock: 1,941
Can ship immediately
Pricing:
- 1$5.32
- 1,800$5.187
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up, Step-Down
- Output Configuration:Positive
- Topology:Buck, Boost
- Number of Outputs:2
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):1.5V ~ 36V
- Frequency - Switching:1.4MHz
- Duty Cycle (Max):90%
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Enable, Power Good, Soft Start
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:24-SSOP (0.209", 5.30mm Width)
- Supplier Device Package:24-SSOP
