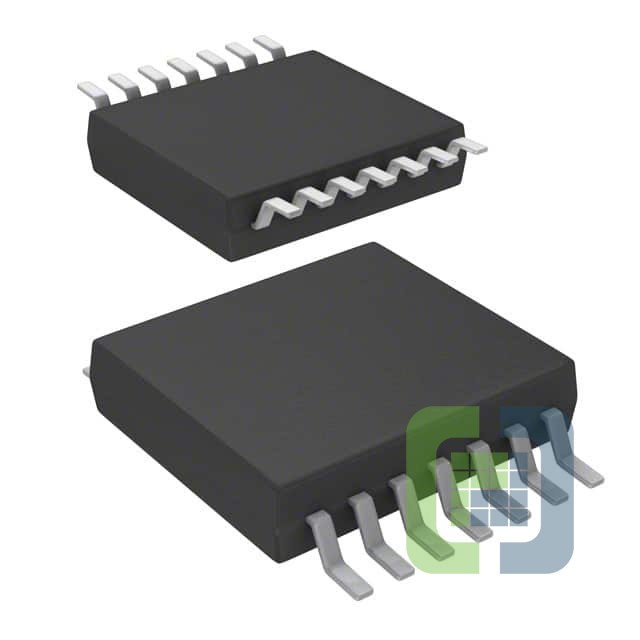

UCC25702PW
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionUCC25702 ADVANCED VOLTAGE MODE P
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 37,514
Can ship immediately
Pricing:
- 1$5.56
- 10$5.02019
- 90$4.78643
- 180$4.15599
- 540$3.61898
- 1,080$3.15202
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up, Step-Up/Step-Down
- Output Configuration:Positive, Isolation Capable
- Topology:Boost, Flyback, Forward Converter
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):8.8V ~ 15V
- Frequency - Switching:100kHz
- Duty Cycle (Max):99%
- Synchronous Rectifier:No
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Current Limit, Frequency Control, Sequencing, Soft Start
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:14-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package:14-TSSOP
