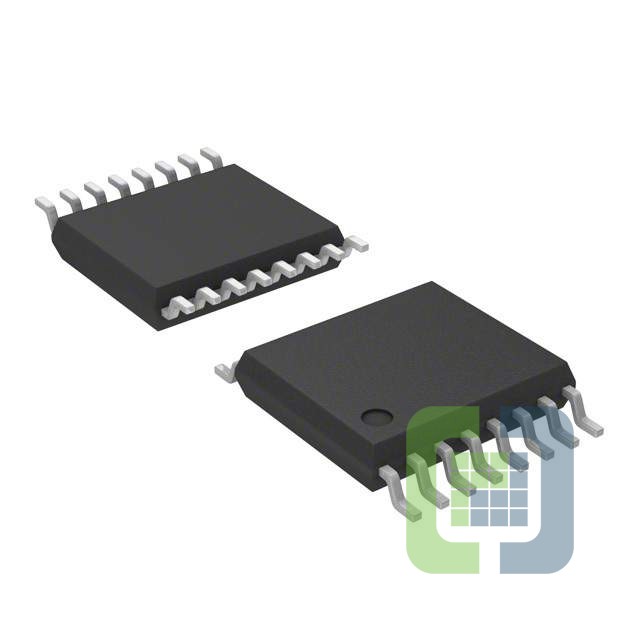

UCC3806PW
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionUCC3806 LOW POWER, DUAL OUTPUT,
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 2,532
Can ship immediately
Pricing:
- 1$7.26
- 90$7.26
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up, Step-Down, Step-Up/Step-Down
- Output Configuration:Positive, Isolation Capable
- Topology:Buck, Boost, Flyback, Forward Converter
- Number of Outputs:2
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):8V ~ 14.5V
- Frequency - Switching:47kHz
- Duty Cycle (Max):50%
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control
- Operating Temperature:0°C ~ 70°C (TA)
- Mounting Type:Surface Mount
- Package / Case:16-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package:16-TSSOP
