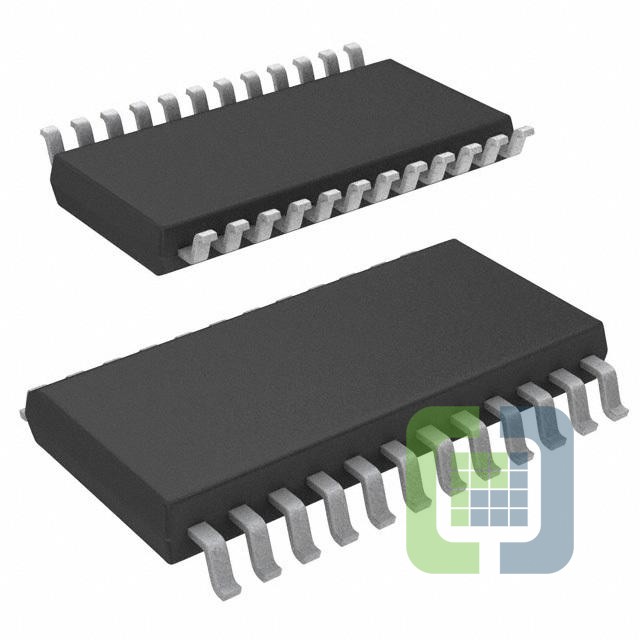

LTC1436AIGN#PBF
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSWITCHING CONTROLLER, CURRENT-MO
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet LTC1436AIGN#PBF Datasheet
-
ECAD Model
- Share
In Stock: 277
Can ship immediately
Pricing:
- 1$7.92
- 110$7.92
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):3.5V ~ 30V
- Frequency - Switching:Up to 400kHz
- Duty Cycle (Max):99%
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Enable, Power on Reset, Soft Start
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:24-SSOP (0.154", 3.90mm Width)
- Supplier Device Package:24-SSOP
