LTC3736EUF
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionLTC3736 - DUAL 2-PHASE, NO RSENS
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 1,201
Can ship immediately
Pricing:
- 1$15.02
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Obsolete
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:2
- Output Phases:2
- Voltage - Supply (Vcc/Vdd):2.75V ~ 9.8V
- Frequency - Switching:300kHz ~ 750kHz
- Duty Cycle (Max):100%
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Power Good, Soft Start, Tracking
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount

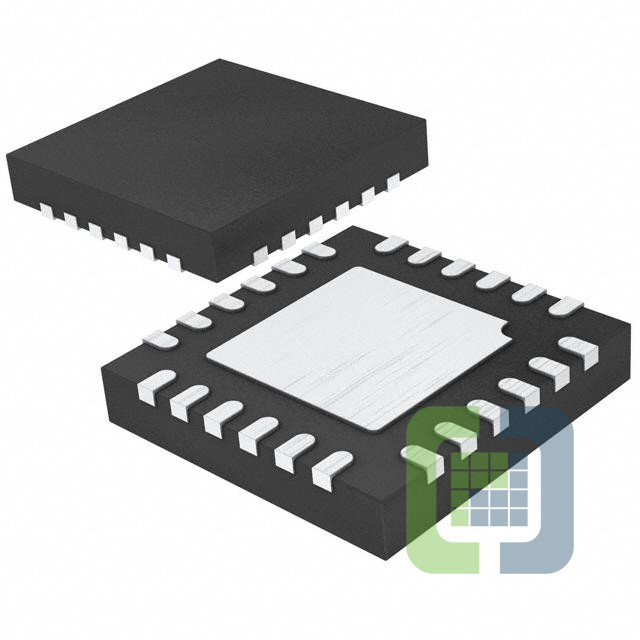

- Package / Case:24-WFQFN Exposed Pad
- Supplier Device Package:24-QFN (4x4)
