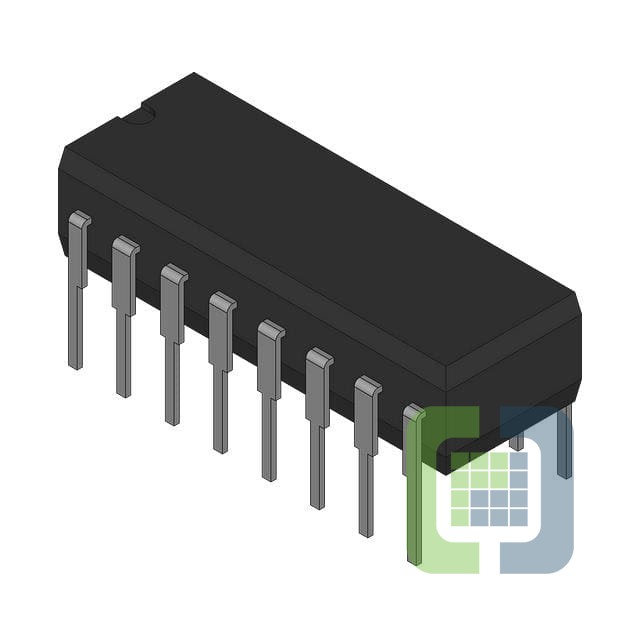

MAX797MJE
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionMAX797 STEP-DOWN CONTROLLER WITH
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 954
Can ship immediately
Pricing:
- 1$54.16
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up, Step-Down, Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Boost, Buck, Flyback
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):5V ~ 30V
- Frequency - Switching:150kHz, 300kHz
- Duty Cycle (Max):96%
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Enable, Pulse Skipping, Soft Start
- Operating Temperature:-55°C ~ 125°C (TA)
- Mounting Type:Through Hole
- Package / Case:16-CDIP (0.300", 7.62mm)
- Supplier Device Package:16-CERDIP
