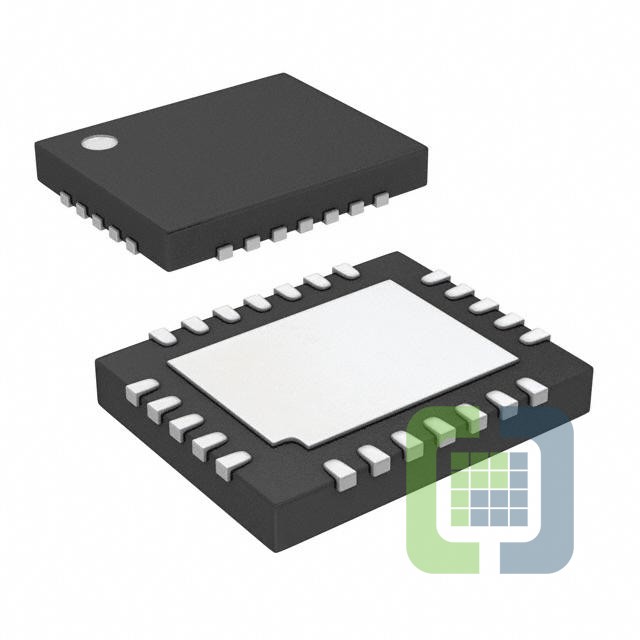

LTC7801HUFD#PBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR SYNC BUCK 24QFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet LTC7801HUFD#PBF Datasheet
-
ECAD Model
- Share
In Stock: 192
Can ship immediately
Pricing:
- 1$12.34
- 25$8.19328
- 100$6.77463
- 250$6.43591
- 500$6.29073
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):4V ~ 140V
- Frequency - Switching:50kHz ~ 900kHz
- Duty Cycle (Max):100%
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Power Good, Soft Start, Tracking
- Operating Temperature:-40°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:24-WFQFN Exposed Pad
- Supplier Device Package:24-QFN (4x5)
