TPS40054PWP
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK 16HTSSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 129
Can ship immediately
Pricing:
- 1$5.59
- 10$5.02357
- 90$4.74944
- 180$4.11613
- 540$3.504
- 1,080$2.95517
- 2,520$2.80741
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Not For New Designs
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):8V ~ 40V
- Frequency - Switching:Up to 1MHz
- Duty Cycle (Max):94%
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control, Soft Start
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount

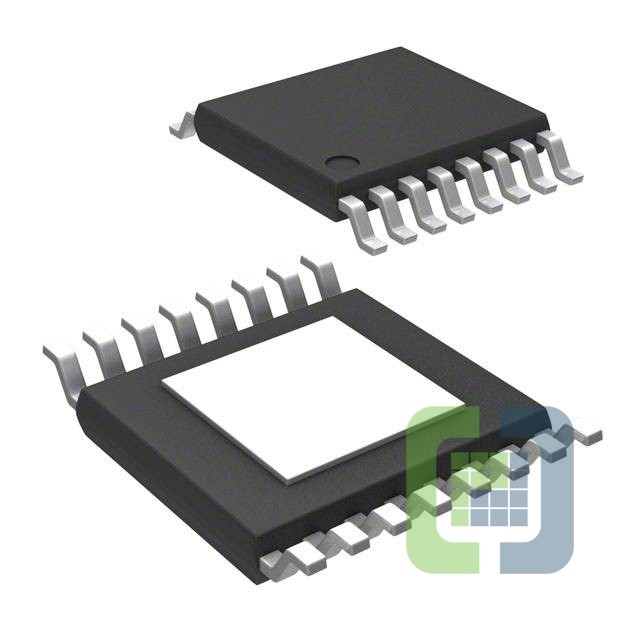

- Package / Case:16-PowerTSSOP (0.173", 4.40mm Width)
- Supplier Device Package:16-HTSSOP
