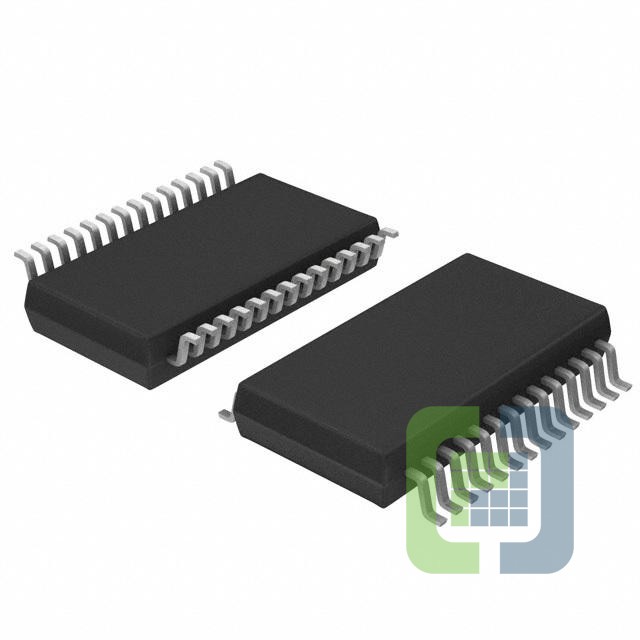

LTC3787MPGN#PBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BOOST 28SSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet LTC3787MPGN#PBF Datasheet
-
ECAD Model
- Share
In Stock: 174
Can ship immediately
Pricing:
- 1$22.85
- 25$18.27759
- 100$14.89521
- 250$14.55923
Quote It
Technical Details
- Series:PolyPhase®
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up
- Output Configuration:Positive
- Topology:Boost
- Number of Outputs:2
- Output Phases:2
- Voltage - Supply (Vcc/Vdd):4.5V ~ 38V
- Frequency - Switching:105kHz ~ 760kHz
- Duty Cycle (Max):96%
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control, Power Good, Soft Start
- Operating Temperature:-55°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:28-SSOP (0.154", 3.90mm Width)
- Supplier Device Package:28-SSOP
