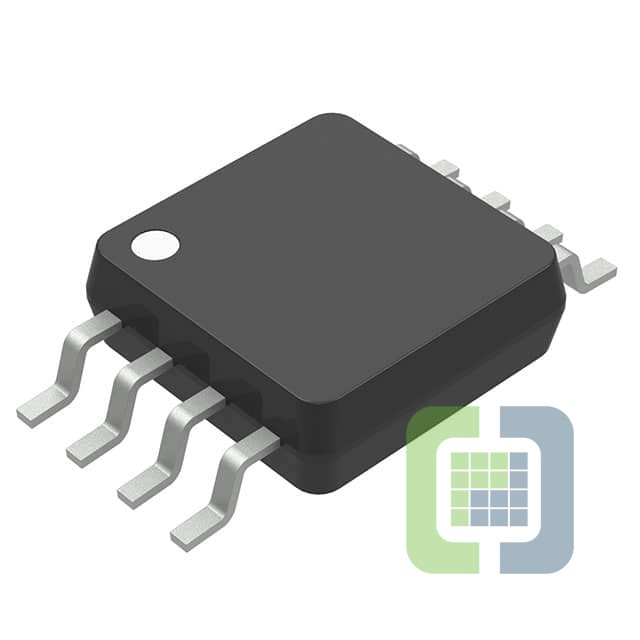

MCP1651R-E/MS
Microchip Technology
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR MULT TOPOLOGY 8MSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet MCP1651R-E/MS Datasheet
-
ECAD Model
- Share
In Stock: 393
Can ship immediately
Pricing:
- 1$1.53
- 25$1.27435
- 100$1.16237
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up, Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Boost, Flyback, SEPIC
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):2.7V ~ 5.5V
- Frequency - Switching:750kHz
- Duty Cycle (Max):80%
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Low Battery, Power Good
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
- Supplier Device Package:8-MSOP
