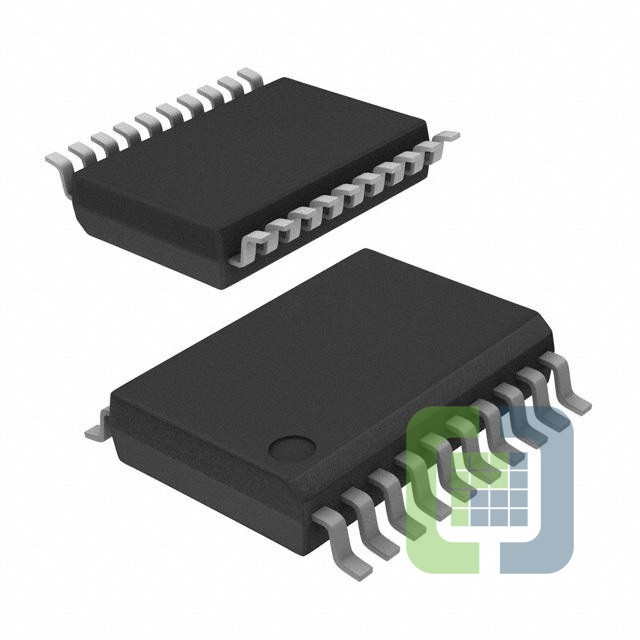

MCP1631VHV-500E/SS
Microchip Technology
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR SEPIC 20SSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet MCP1631VHV-500E/SS Datasheet
-
ECAD Model
- Share
In Stock: 517
Can ship immediately
Pricing:
- 1$1.71
- 25$1.42581
- 100$1.30001
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Sepic
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):3.5V ~ 16V
- Frequency - Switching:-
- Duty Cycle (Max):-
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Enable, Frequency Control, Ramp
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:20-SSOP (0.209", 5.30mm Width)
- Supplier Device Package:20-SSOP
