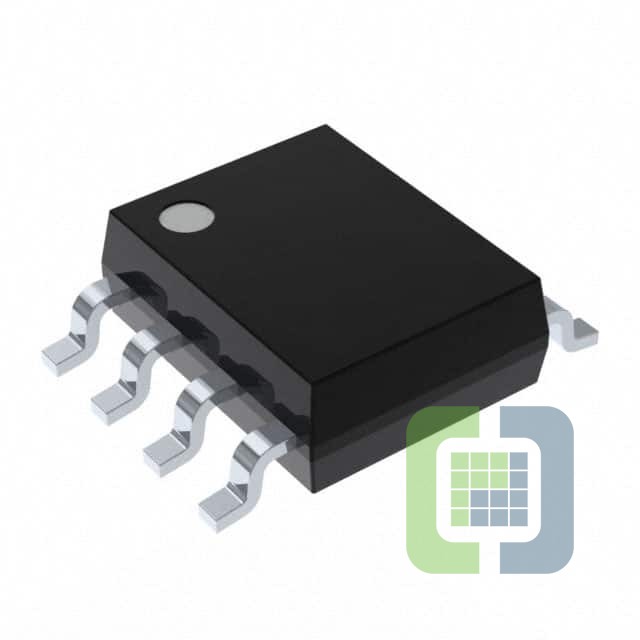

MAX5071BASA+
Maxim Integrated
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR FLYBACK 8SOIC
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 291
Can ship immediately
Pricing:
- 1$2.08
- 10$1.86697
- 25$1.76129
- 100$1.50062
- 300$1.40903
- 500$1.2329
- 1,000$1.02155
- 2,500$0.9511
- 5,000$0.91587
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up/Step-Down
- Output Configuration:Positive, Isolation Capable
- Topology:Flyback
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):10.8V ~ 30V
- Frequency - Switching:20kHz ~ 1MHz
- Duty Cycle (Max):49.8%
- Synchronous Rectifier:No
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Frequency Control
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package:8-SOIC
