LTC7840HUFD#PBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionDUAL PHASE/OUTPUT NON-SYNCH BOOS
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 238
Can ship immediately
Pricing:
- 1$9.46
- 25$6.28318
- 100$5.19509
- 250$4.93535
- 500$4.82401
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Type:PWM
- Function:Step-Up
- Output Configuration:Positive
- Topology:Boost
- Number of Outputs:2
- Output Phases:2
- Voltage - Supply (Vcc/Vdd):5.5V ~ 60V
- Frequency - Switching:50kHz ~ 425kHz
- Duty Cycle (Max):96%
- Synchronous Rectifier:No
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control, Power Good
- Operating Temperature:-40°C ~ 150°C (TJ)
- Mounting Type:Surface Mount

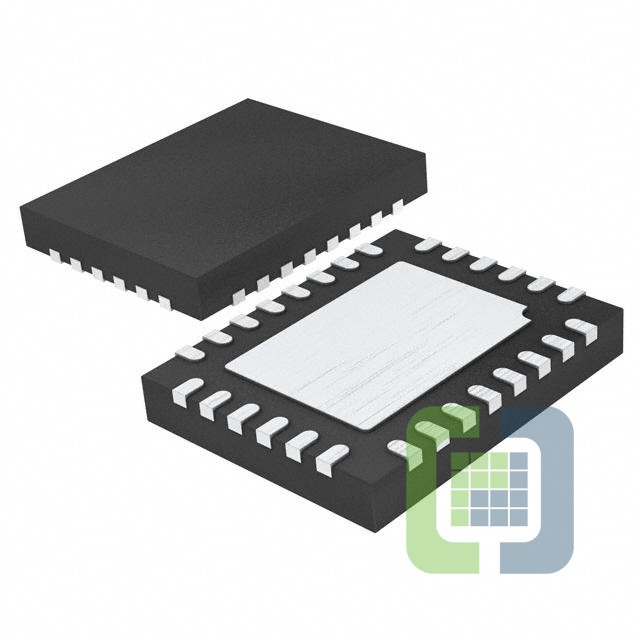

- Package / Case:28-WFQFN Exposed Pad
- Supplier Device Package:28-QFN (4x5)
