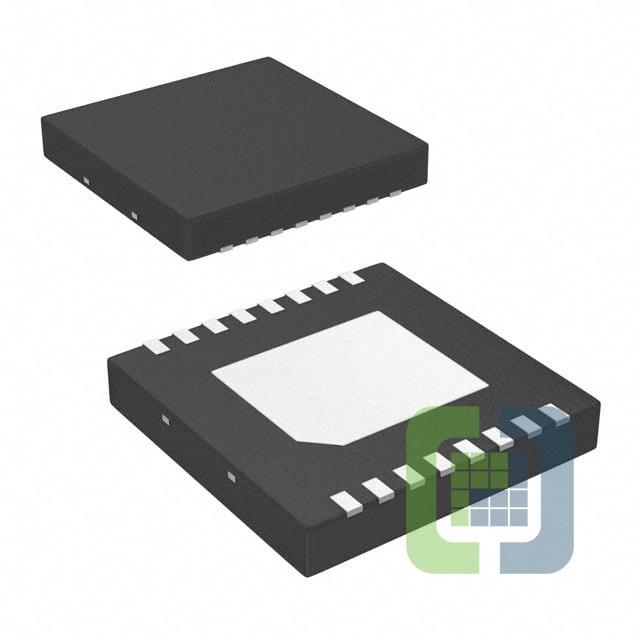

LM5025ASD
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSWITCHING CONTROLLER, VOLTAGE-MO
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 1,110
Can ship immediately
Pricing:
- 1$0.71
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up/Step-Down
- Output Configuration:Positive, Isolation Capable
- Topology:Forward Converter
- Number of Outputs:2
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):8V ~ 15V
- Frequency - Switching:200kHz ~ 580kHz
- Duty Cycle (Max):80%
- Synchronous Rectifier:No
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Dead Time Control, Frequency Control, Ramp, Soft Start
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:16-WFDFN Exposed Pad
- Supplier Device Package:16-WSON (5x5)
