MCP1633-E/MG
Microchip Technology
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionHIGH SPEED PWM CONTROLLER W/ DIM
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 645
Can ship immediately
Pricing:
- 1$1.65
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up, Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Boost, Cuk, Flyback, SEPIC
- Number of Outputs:1
- Output Phases:-
- Voltage - Supply (Vcc/Vdd):3V ~ 5.5V
- Frequency - Switching:200kHz ~ 2.2MHz
- Duty Cycle (Max):90%
- Synchronous Rectifier:No
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control, Soft Start
- Operating Temperature:-40°C ~ 125°C (TA)
- Mounting Type:Surface Mount

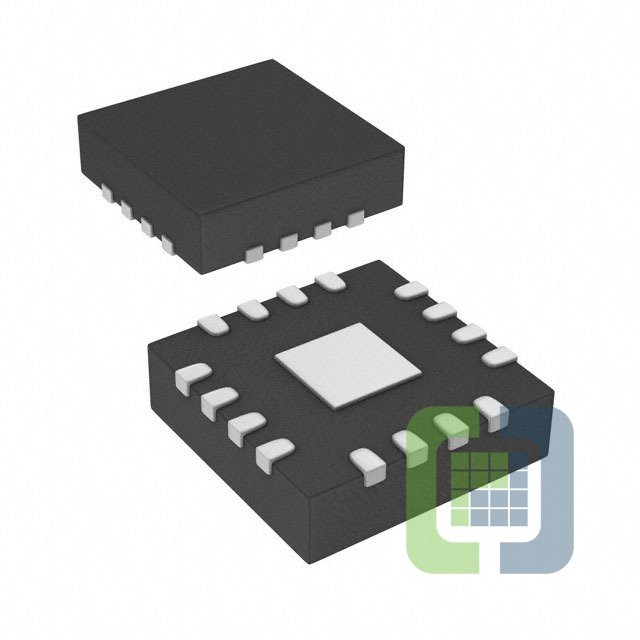

- Package / Case:16-VFQFN Exposed Pad
- Supplier Device Package:16-QFN (3x3)
